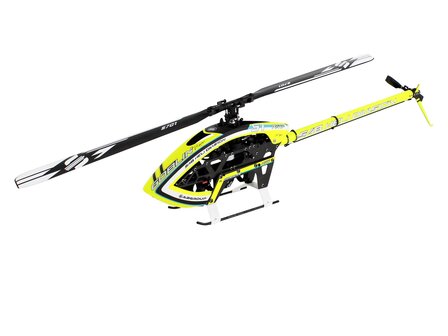

ILGoblin RAW is a simpler version of the PRO with an aluminum tail boom, this version will have the same main components of the ilGOBLIN PRO.
Specifications:
• AIRFRAME weight: 2122 gr (no blades, no battery, no electronics).
• Main rotor diameter: 1576 mm (with 700 mm blades).
• Main blade length: 650 to 730 mm.
• Tail rotor diameter: 292 mm (with 110 mm tail blades).
• Tail blade length: 105 to 115 mm.
• Cyclic Servos: Standard size 40 mm.
• Tail Servo: Standard size 40 mm.
• Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).
• Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1).
• Main shaft 15 mm, Tail shaft 8 mm.
• Aluminum tail boom.
• Motor 12S, 480/560 KV.
• Battery room: 50x60x300 mm.
KIT Includes:
• 21T motor pulley (other pulley sizes available).
• 1 battery tray with straps.
• S701 (700 mm main blades).
• S105 (105 mm tail blades).
The release date is scheduled for around August 20th
