MKS DS8910A+

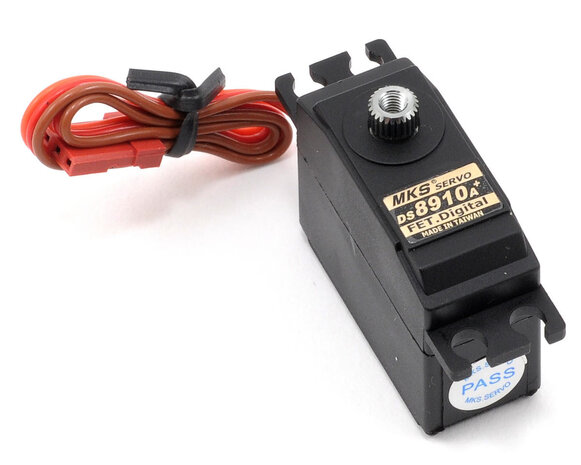

MKS DS-8910A+ Digital High Speed Metal Gear Mini Servo. This servo is recommended for 500 class helicopter tail applications.

DS-8910A+ (narrow band) Specifications:

• Dead band: 0.0008ms (Default)
• Control System: +Pulse Width Control
• Working frequency: 760us/560Hz
• (RX) Required Pulse: 3.0~6.0 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8~6.0 V DC
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (4.8V): 0.052 sec/60° degrees at no load
• Operating Speed (6.0V): 0.040 sec/60° degrees at no load
• Stall Torque (4.8V): 29.16oz/in (2.1 kg-cm)
• Stall Torque (6.0V): 36.11 oz/in (2.6 kg-cm)
• 360° Modifiable: NO
• Motor Type: Coreless Motor
• Potentiometer Drive: Indirect Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: Titanium Gears
• Programmable: NO
• Connector Wire Length: 15.0 cm (5.9 in)

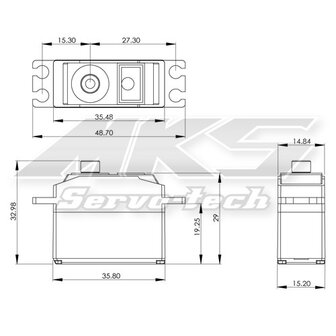

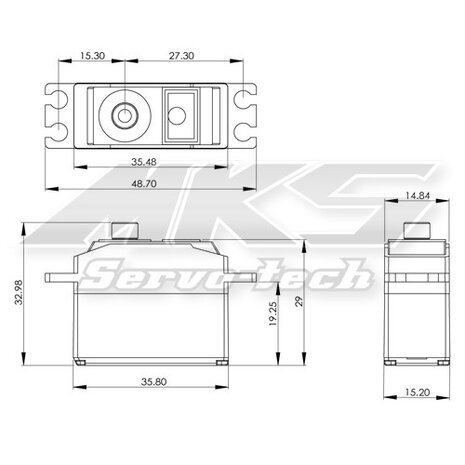

• Dimensions: 35.8x15.2x29mm (1.41x0.6x1.14")
• Weight: 28g (0.99oz)
